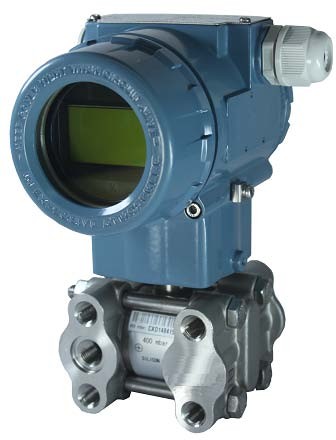

Absolute Pressure Transmitter

The pressure transmitter RP2012/3 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. RP2012/3 outputs a 4 to 20 mA DC signal corresponding to the measured pressure. The key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

DIMENSIONS                                                                                                                    Unit : mm

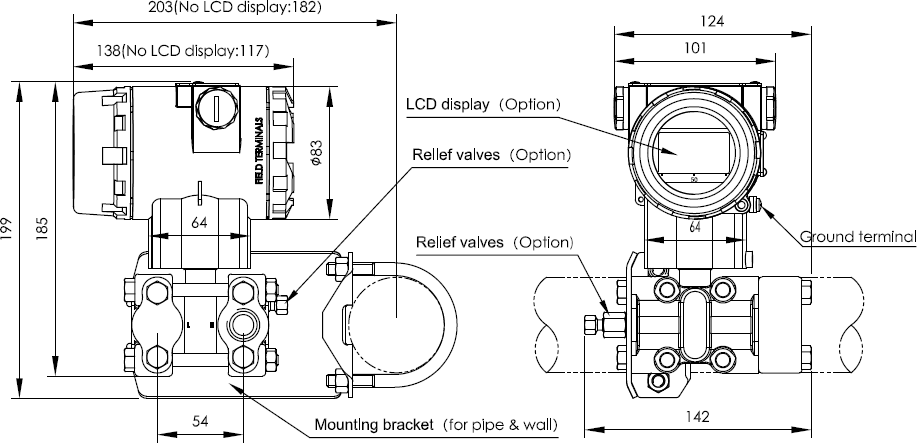

Horizontal Impulse Piping Type（side face）     Horizontal Impulse Piping Type（front side）

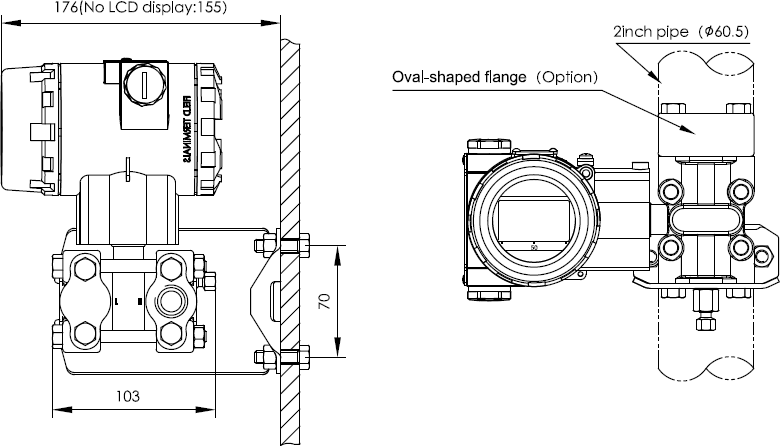

Horizontal Impulse Wall mounting Type                     Vertical Impulse Piping Type
