Differential Pressure Transmitter

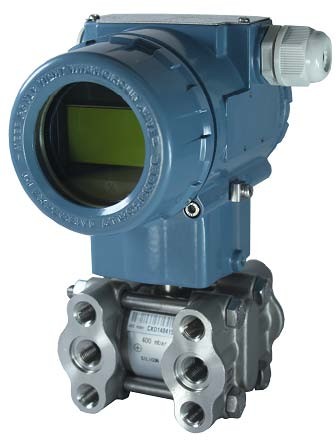

The differential pressure transmitter RP2001 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. RP1001- B/C outputs a 4 to 20 mA DC HART signal corresponding to the measured differential pressure. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

DIMENSIONS                                                                                                                    Unit : mm

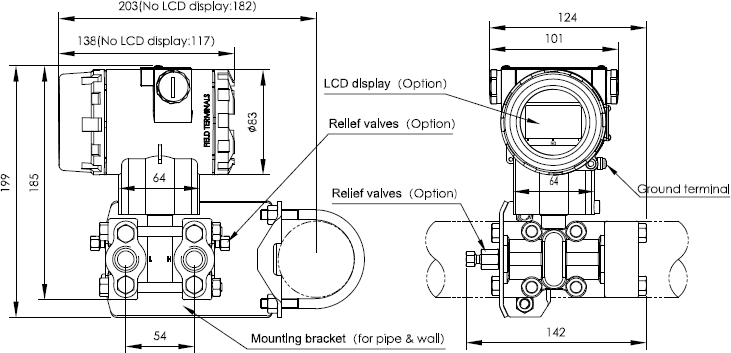

Horizontal Impulse Piping Type（side face）     Horizontal Impulse Piping Type（front side）

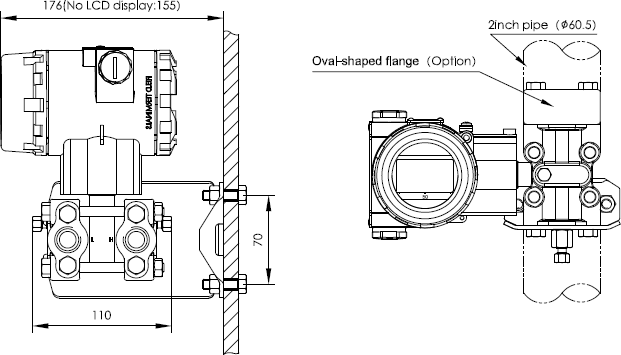

Horizontal Impulse Wall mounting Type                                   Vertical Impulse Piping Type

STANDARD SPECIFICATIONS

Reference Accuracy of Calibrated Span (includes terminal-based linearity, hysteresis, and repeatability)

± 0.075%

If TD>10 (TD=URL/SPAN):

±(0.0075×TD)%

The square root accuracy is 1.5 times of reference accuracy of calibrated span.

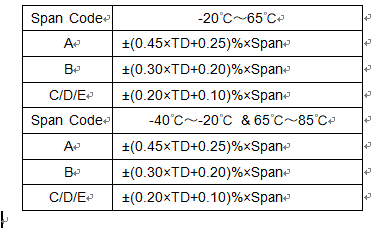

Ambient Temperature Effects

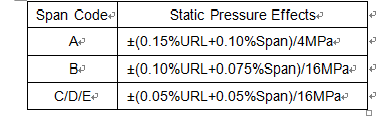

Static Pressure Effects
