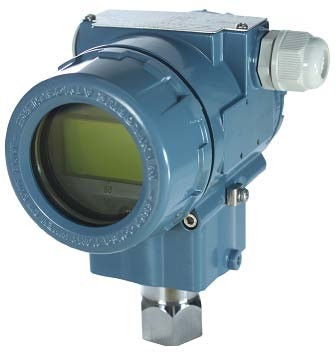

Gauge Pressure Transmitter

RP2002



The pressure transmitter RP2002/3 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. RP2002/3 outputs a 4 to 20 mA DC signal corresponding to the measured pressure. The key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

DIMENSIONS                                                                                                                    Unit : mm

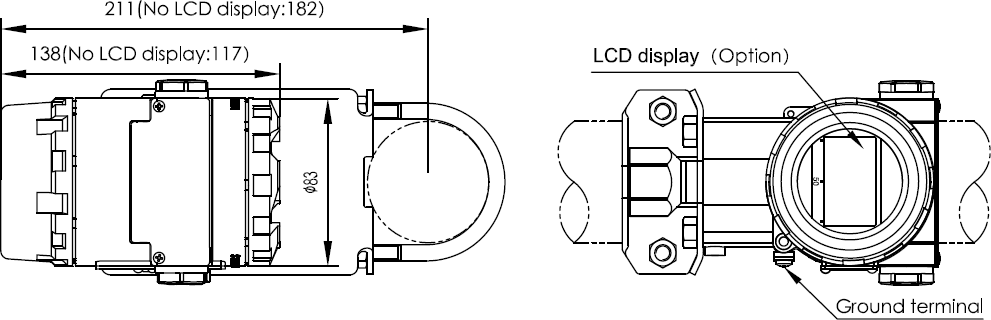

Horizontal Impulse Piping Typeside face)     Horizontal Impulse Piping Typefront side
D4

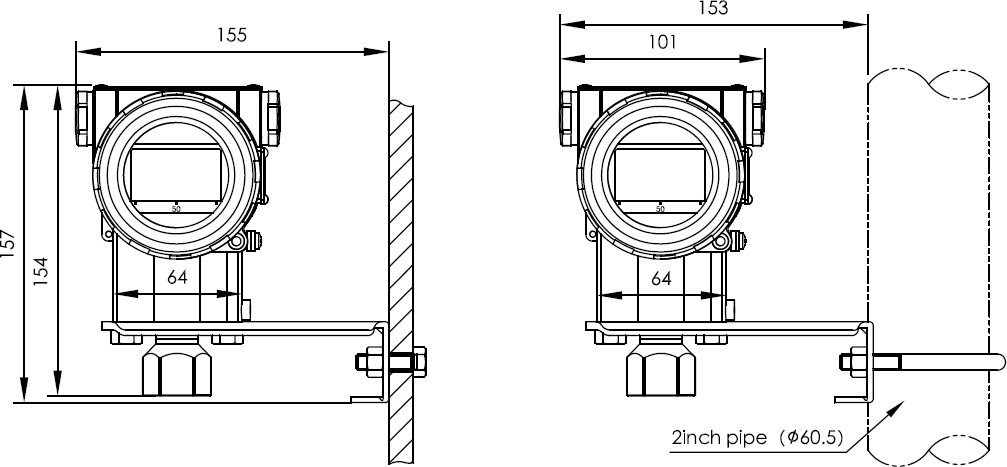

Horizontal Impulse Wall mounting Type                     Vertical Impulse Piping Type

D5
